💎Description&Main Features:

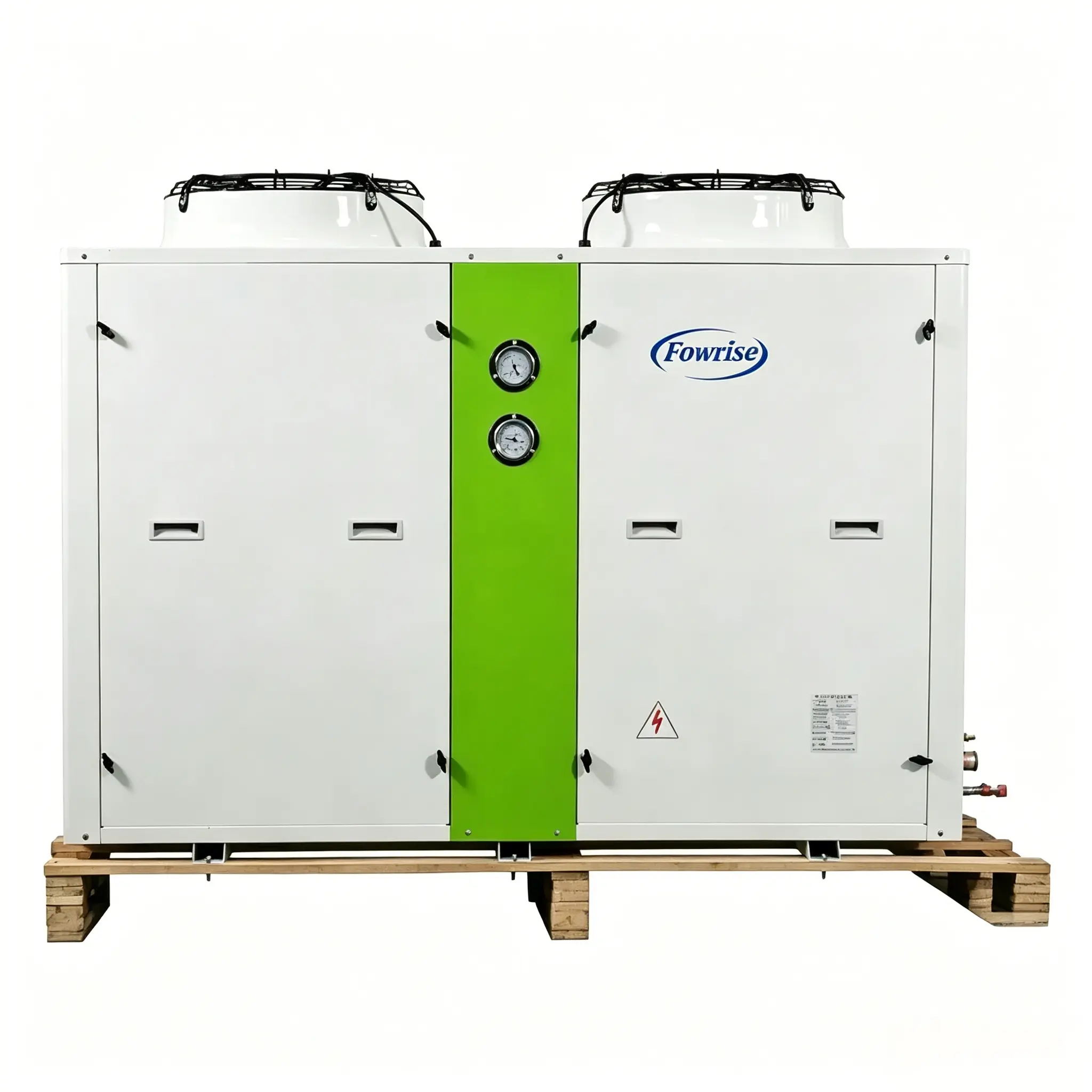

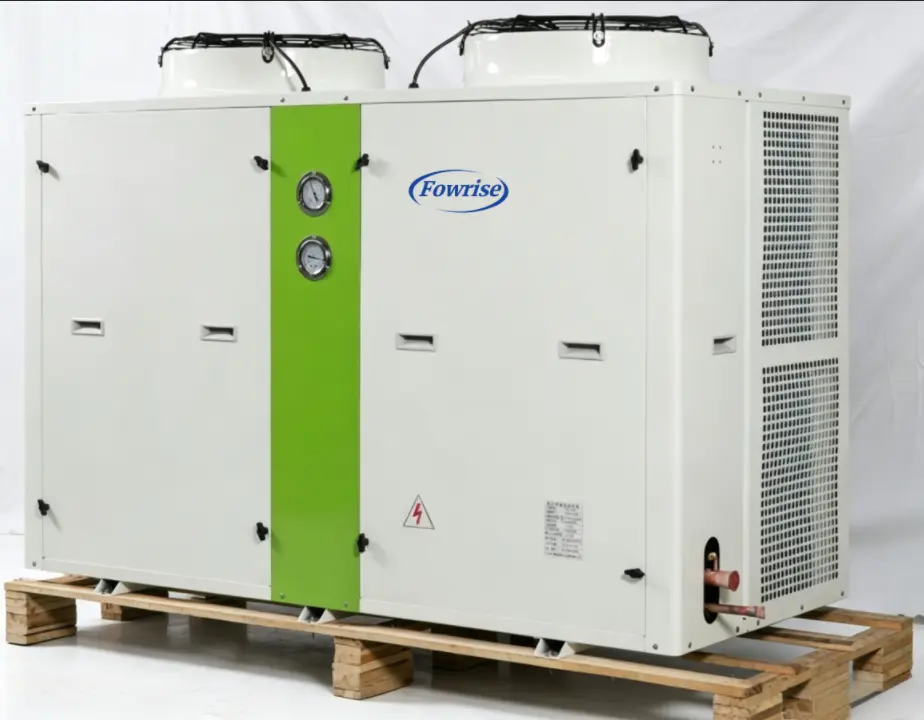

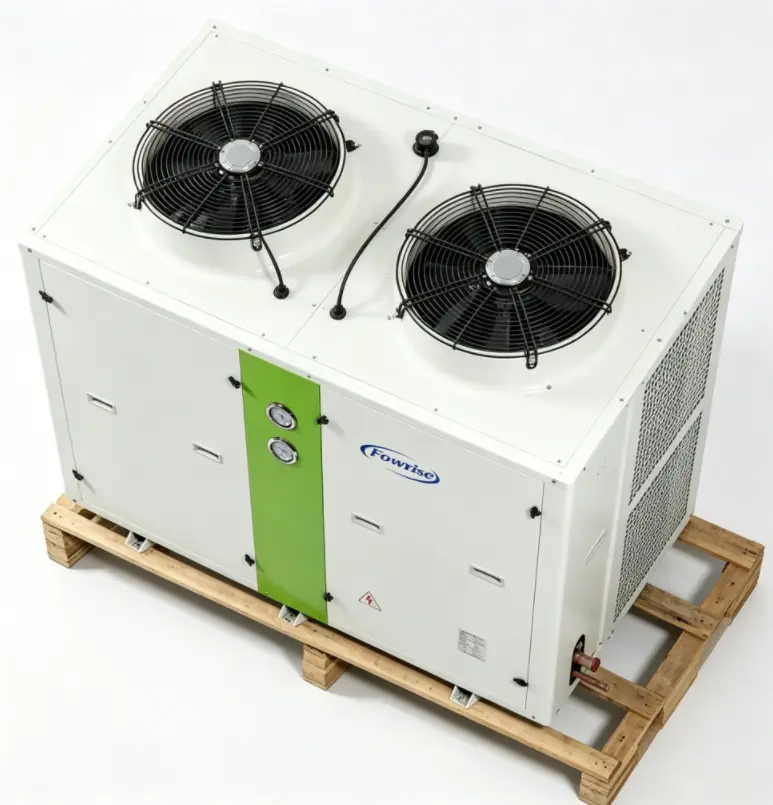

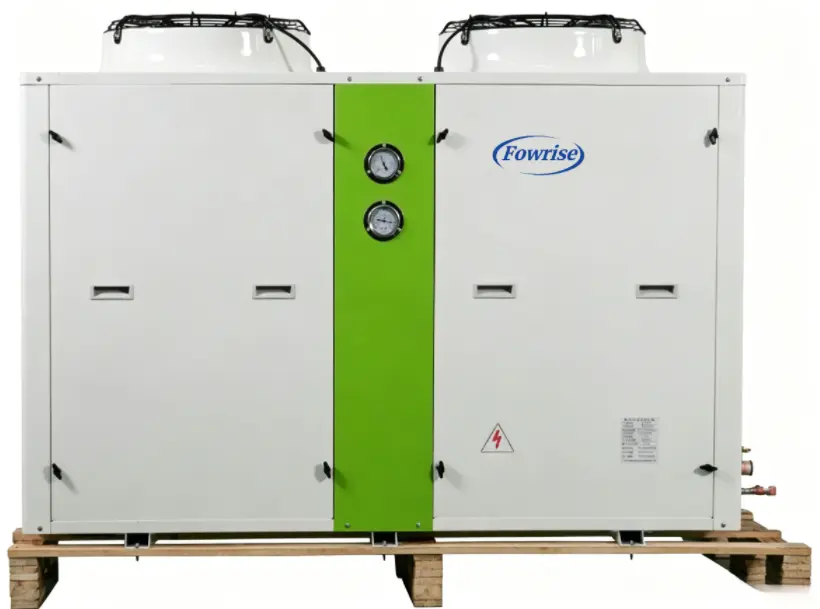

1、Outdoor air-cooled unit, consisting of a fully enclosed frozen vortex compressor, an efficient air-cooled condenser (internal threaded copper tube+double positive spiral corrugated hydrophilic fins), a liquid reservoir, drying filter, solenoid valve, high and low pressure controller, condensing pressure controller, high and low pressure gauge, and an integrated outer shell.
2、Outdoor design to ensure a clean and beautiful appearance of the unit; The design feature of outdoor type is more convenient for installation without the need for a computer room; The condenser fan adopts a high air volume and low noise axial flow fan, and the unit casing is made of high-quality anti-corrosion cold plate, with the surface coated with epoxy resin.
3、Before leaving the factory, the unit undergoes airtightness and safety testing, and dry nitrogen gas is injected to ensure the reliability, energy conservation, and low noise of the unit operation.
💎Main technical specifications
| Top out air box air-cooled condensing unit | ||||||
| Main technical specifications | ||||||
| Model of units | W8CQFZG | W10CQFZG | W12CQFZG | W15CQFZG | ||
| ApplicableTemperature(°C) | +10–15℃ | |||||
| Refrigerant | R22/R404A | |||||
| Powersupply | 380V/50Hz | |||||
| condenser | Number of fans (pieces) | 1 | 2 | 2 | 2 | |
| Air volume (m) ³/ H) | 1×8700 | 2×6570 | 2×6570 | 2×8700 | ||
| Motor power (w) | 1×600 | 2×450 | 2×450 | 2×600 | ||
| Refrigeration capacity of compressor unit | Evaporating Temperature +5°C |
(W) Cooling capacity |
21000/19950 | 29800/28300 | 34200/32500 | 39400/37300 |
| (W) Power |
6600/7670 | 8020/9500 | 11000/12800 | 13700/15850 | ||
| Evaporating Temperature -5℃ |
(W) Cooling capacity |
15000/14650 | 21500/20700 | 24500/24000 | 28200/27500 | |
| (W) Power |
6000/7060 | 7320/8840 | 9970/11750 | 12200/14450 | ||
| Evaporating Temperature -12℃ |
(W) Cooling capacity |
11600/11400 | 16500/16150 | 18500/18800 | 21200/21400 | |
| (W) Power |
5460/6690 | 6930/8400 | 9300/11000 | 11450/13650 | ||
| interface | Tubecoupling | 1/2″ | 5/8″ | 5/8″ | 5/8″ | |
| Suction coupling | 1-1/8″ | 1-3/8″ | 1-3/8″ | 1-3/8″ | ||
| Overall dimensions | (L)mm Length | 900 | 1540 | 1540 | 1540 | |
| (B)mm Width | 660 | 710 | 710 | 710 | ||
| (H)mm Height | 1150 | 1290 | 1290 | 1290 | ||
| Mounting dimensions | (D)mm Length | 600 | 1040 | 1040 | 1040 | |
| (E)mm Width | 695 | 735 | 735 | 735 | ||
| Standard configuration of the unit: compressor, condenser, reservoir, pressure control, pressure gauge, filter, solenoid valve, junction box, etc. | ||||||
| Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard. | ||||||

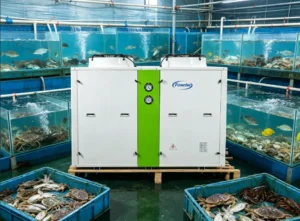

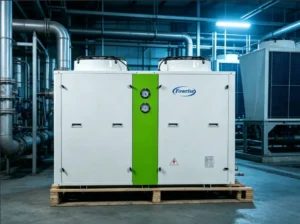

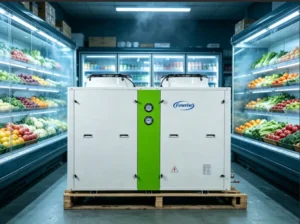

💎Applicable Scene
