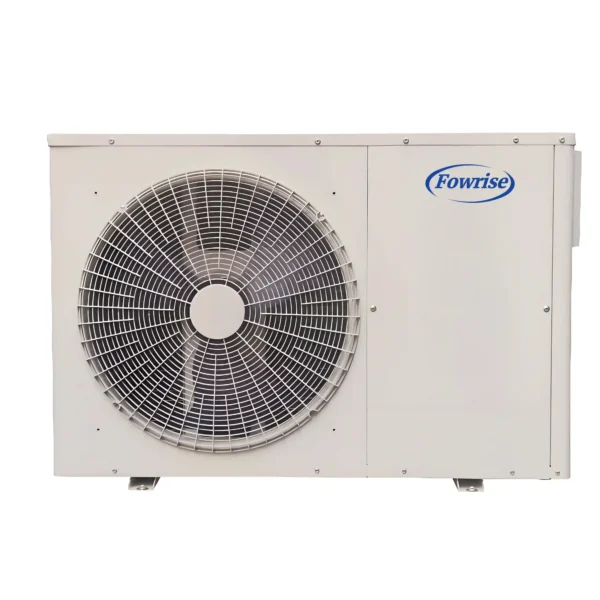

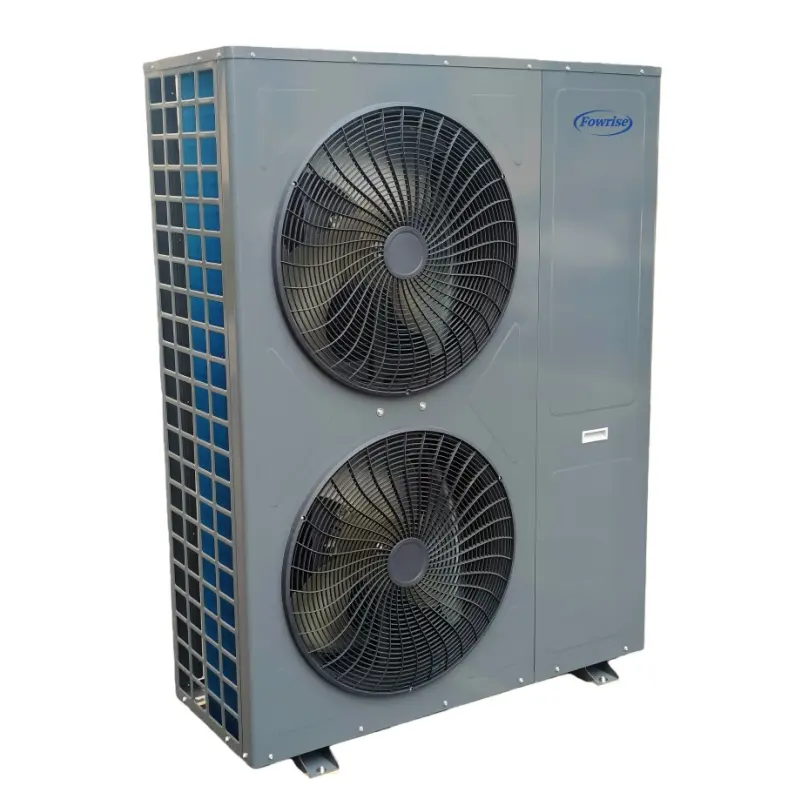

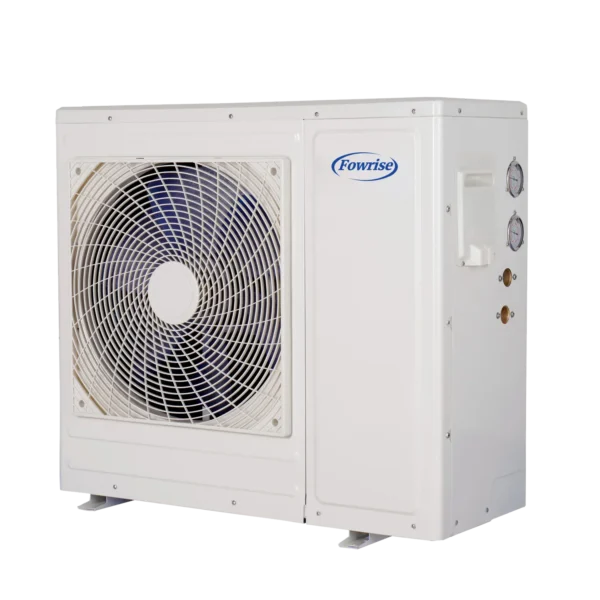

Heat Pump System For Heating Cooling Domestic Hot Water
R32 EVI full DC inverter heat pump is engineered for harsh cold climates while meeting the highest standards of energy efficiency. Utilizing the eco-friendly R32 refrigerant, it delivers superior heat transfer efficiency and reduced carbon emissions. At its core, the unit features advanced EVI technology combined with a full DC inverter system, enabling powerful heating performance even in ultra-low temperatures of -25°C or -35°C,effectively eliminating the issue of heating capacity loss during extreme cold. Meanwhile, intelligent inverter algorithms precisely adjust output based on indoor load requirements, ensuring rapid heating and cooling, consistent comfort, and significantly lower energy consumption. Whether for space heating, cooling, or commercial hot water applications, it offers a stable, quiet, and highly cost-effective green solution for year round operation.
💎Features:
1) Extended working range down to -35°C ambient (low ambient type)

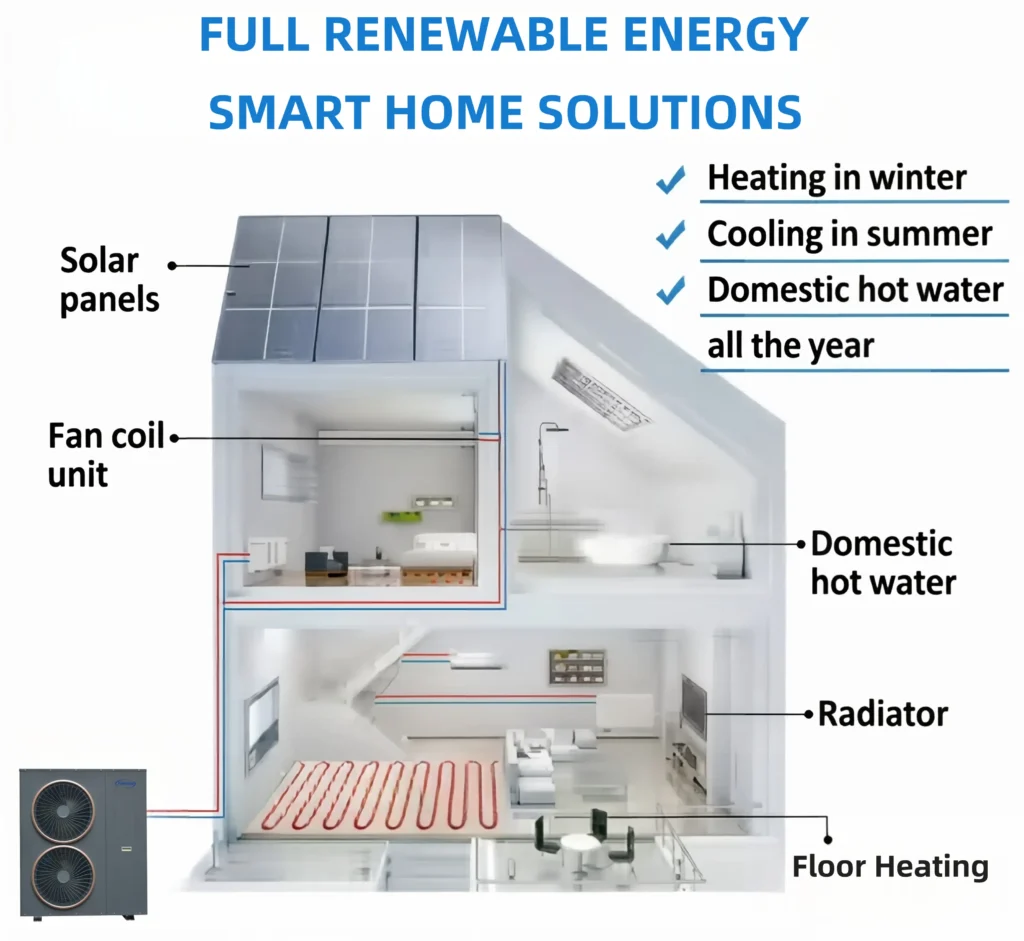

2) 5 modes: heating only, heating+DHW, cooling only, cooling+DHW, DHW only
3) Low running costs and high efficiency
4) Long-life and corrosion resistant composite cabinet stands up to severe climates
5) Famous compressor ensures outstanding performance and durability
6) LCD touch screen with self-diagnostic control function
7) Automatic defrosting
8) Easy operation and simple installation
9) WIFI control function is optiona
💎Specifications:
| Monoblock EVI+DC inverter air to water heating & cooling &DHW Heat Pump | ||||||||||||
| Model | FKH03C-BD | FKH05C-BD | FKH06C-BD | FKH08C-BD | FKH05C-BD | FKH06C-BD | FKH08C-BD | FKH10C-BD | FKH12C-BD | FKH15C-BD | ||
| Heating （A7℃/W45℃） |
Heating Capacity | kW | 9 | 14 | 15 | 21 | 15 | 16 | 23 | 26 | 29 | 35 |
| Power Input | kW | 2.9 | 4.38 | 4.68 | 6.36 | 4.55 | 4.85 | 6.97 | 7.88 | 9.06 | 10.94 | |
| COP | – | 3.10 | 3.20 | 3.21 | 3.30 | 3.3 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 | |
| Nominal heating （Fan coil） （A-12℃/W41℃） |
Heating Capacity | kW | 6.8 | 11 | 12 | 15 | 12 | 13 | 16.5 | 20 | 22 | 26 |
| Power Input | kW | 2.96 | 4.78 | 5.22 | 6.49 | 5.17 | 5.63 | 7.11 | 8.62 | 9.52 | 11.30 | |
| COP | – | 2.30 | 2.30 | 2.30 | 2.31 | 2.32 | 2.31 | 2.32 | 2.32 | 2.31 | 2.30 | |
| Nominal heating （Floor Heating） （A-12℃/W35℃） |
Heating Capacity | kW | 7 | 11.5 | 12.7 | 16 | 12.00 | 13.50 | 17.00 | 22.00 | 24.00 | 28.00 |
| Power Input | kW | 2.8 | 4.58 | 5.03 | 6.4 | 4.78 | 5.36 | 6.80 | 8.70 | 9.60 | 11.20 | |
| COP | – | 2.50 | 2.51 | 2.52 | 2.50 | 2.51 | 2.52 | 2.50 | 2.53 | 2.50 | 2.50 | |
| Nominal heating （Radiators） （A-12℃/W50℃） |
Heating Capacity | kW | 6 | 10 | 11 | 14 | 10.50 | 11.50 | 14.80 | 18.00 | 20.00 | 23.00 |
| Power Input | kW | 3.04 | 5.23 | 5.64 | 7.18 | 5.38 | 5.90 | 7.59 | 9.23 | 10.36 | 11.92 | |
| COP | – | 1.97 | 1.91 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.93 | 1.93 | |
| Low temperature heating （Fan coil） （A-20℃/W41℃） |
Heating Capacity | kW | 5.8 | 9.5 | 10.5 | 13.5 | 10.00 | 11.00 | 14.00 | 16.50 | 18.50 | 21.50 |
| Power Input | kW | 2.9 | 4.75 | 5.25 | 6.99 | 5.00 | 5.50 | 7.25 | 8.55 | 9.64 | 11.14 | |
| COP | – | 2.00 | 2.00 | 2.00 | 1.93 | 2.00 | 2.00 | 1.93 | 1.93 | 1.92 | 1.93 | |
| Low temperature heating （Floor Heating） （A-20℃/W35℃） |
Heating Capacity | kW | 6.1 | 9.7 | 10.8 | 13.6 | 10.20 | 11.48 | 14.45 | 17.50 | 19.50 | 22.50 |
| Power Input | kW | 2.87 | 4.61 | 5.09 | 6.32 | 4.81 | 5.41 | 6.72 | 8.14 | 9.07 | 10.47 | |
| COP | – | 2.13 | 2.10 | 2.12 | 2.15 | 2.12 | 2.12 | 2.15 | 2.15 | 2.15 | 2.15 | |
| Low temperature heating （Radiators） （A-20℃/W50℃） |
Heating Capacity | kW | 4.9 | 8 | 8.8 | 11.2 | 8.40 | 9.20 | 11.84 | 15.20 | 17.00 | 20.00 |
| Power Input | kW | 2.88 | 4.68 | 5.15 | 6.55 | 4.91 | 5.35 | 6.84 | 8.79 | 9.83 | 11.56 | |
| COP | – | 1.70 | 1.71 | 1.71 | 1.71 | 1.71 | 1.72 | 1.73 | 1.73 | 1.73 | 1.73 | |
| Rated cooling （A35℃/W7℃） |
Cooling Capacity | 5.80 | 10.00 | 11.00 | 15.00 | 10.00 | 11.00 | 15.00 | 22.00 | 23.00 | 30.00 | |
| Power Input | 2.30 | 3.95 | 4.36 | 5.95 | 3.95 | 4.37 | 5.95 | 8.73 | 9.13 | 11.86 | ||
| EER | 2.52 | 2.53 | 2.52 | 2.52 | 2.53 | 2.52 | 2.52 | 2.52 | 2.52 | 2.53 | ||
| Power Supply | / | 220-240V/1N~/50Hz | 380-415V/3N~/50Hz | |||||||||
| Ambient Temperature Range | ℃ | -35 ~ 43ºC | ||||||||||
| Electric Shock Proof Grade | / | Class I | ||||||||||
| Protection Grade | / | IPX4 | ||||||||||
| ErP Level (35°C) | ℃ | A+++ | ||||||||||
| ErP Level (55°C) | ℃ | A++ | ||||||||||
| Refrigerant Type | -/kg | R410A/R32 | ||||||||||
| Noise | dB/(A) | ≤55 | ≤55 | ≤55 | ≤58 | ≤55 | ≤55 | ≤58 | ≤60 | ≤60 | ≤65 | |
| Max. Outlet Water Temp. | °C | 60 | ||||||||||
| Rated Water Flow | m³/h | 1.50 | 2.50 | 3.00 | 4.00 | 2.50 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | |
| Outlet Water Pipe Connector | inch | DN25 | DN25 | DN25 | DN32 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | |
| Compressor | Panasonic/Mitsubishi EVI Rotary type | |||||||||||
| Water Side Heat Exchanger | Plate Heat Exchanger | |||||||||||
| Air Side Heat Exchanger | Inner threaded pipe + Hydrophilic Aluminum Fin Heat Exchanger | |||||||||||
| 4-Way Valve | Sanhua | |||||||||||
| Electronic Expansion Valve | Sanhua | |||||||||||
| Shell Materials | Galvanized steel with powder coating | |||||||||||
| Controller | 4-inch Colored Touch Screen | |||||||||||
| Wi-Fi Function | Yes | |||||||||||
| Crculating Water Pump | DC type | |||||||||||
| Dimension (L*W*H) | mm | 880/360/800 | 930/390/1270 | 930/390/1270 | 1240/480/1480 | 930/390/1270 | 930/390/1270 | 1240/480/1480 | 1350/645/1845 | 1350/645/1845 | 1350/645/1845 | |
| Net Weight | kg | 80 | 110 | 115 | 120 | 110 | 115 | 145 | 180 | 195 | 230 | |
